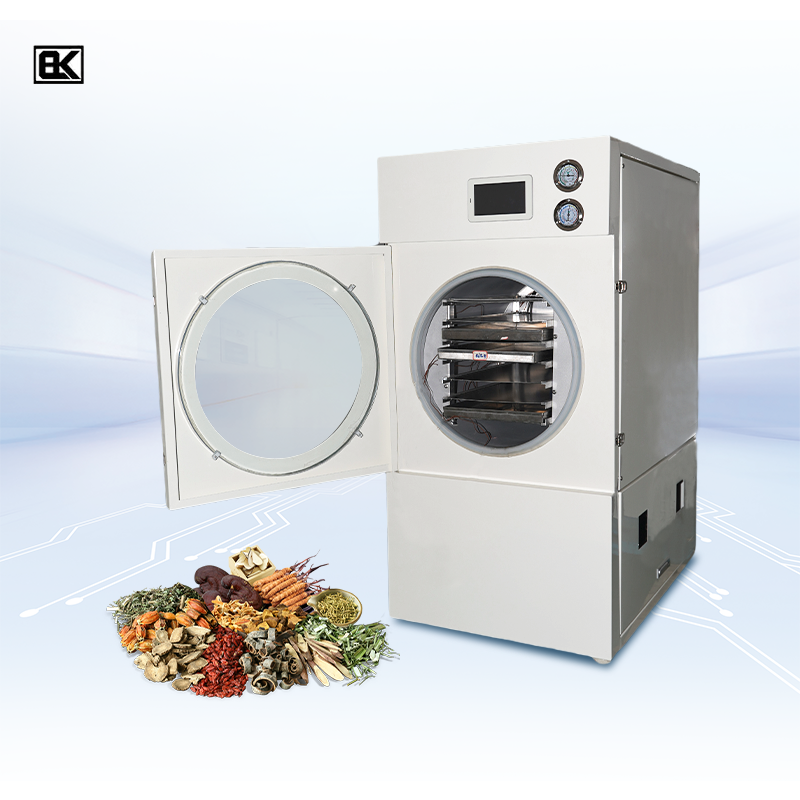

The XSD-FD-1 is a square integrated vacuum freeze dryer designed for drying herbs, food, and biological materials. With a 1㎡ freeze-drying area and air cooling system, it's ideal for laboratories and small-scale production.
Product Details
Model: XSD-FD-1
Structure Type: Square Integrated
Overall Size: 1070 × 770 × 1433 mm
Freeze Drying Area: 1.01㎡
Power: 2.6kW
Weight: 281kg
Tray Layers: 6+1
Tray Size: 315 × 535 mm
Tray Spacing: 55mm
Shelf Temp Range: -35℃ ~ +80℃
Cold Trap Temp: Min -45℃
Cooling Method: Air Cooled
Ultimate Vacuum: <10 Pa (empty chamber)
Heating Method: Electric Heating
Power Supply: 220V / 50Hz
Charging Capacity: 15–20kg
Water Capture Capacity: 18kg
Application: Food, Fruits, Herbs, Biologics
Display: Touchscreen with Vacuum/Temp
Material: SUS304 Stainless Steel
Operation: Fully Automatic
Compressor: Silent, High Efficiency
Noise Level: ≤65 dB
Control System: PLC Touch Control
Drying Time: 8–24 Hours per Cycle
Suitable For: Lab, Pilot Plant, Small Batch Production
Certifications: CE, ISO
Packaging: Export Wooden Box
Warranty: 1 Year
Optional Functions: IoT Remote Monitoring, Logo Customization
