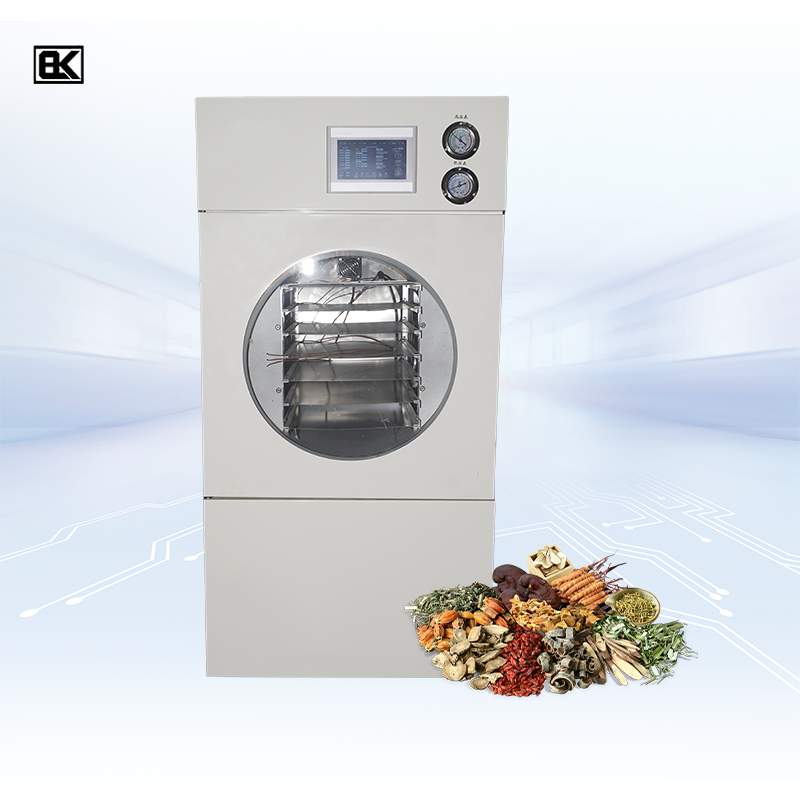

Model: XSD-FD-1
Application: Herbal Extracts, TCM Liquid, Botanical Pastes
Freeze Drying Area: 1.01㎡
Layer Configuration: 6 + 1 trays
Tray Size: 315 × 535 mm
Shelf Spacing: 55 mm
Shelf Temperature: -35℃ ~ +80℃
Cold Trap Temperature: Min -45℃
Ultimate Vacuum: ＜10Pa (empty)
Cooling Method: Air Cooling
Heating Method: Electric Heating
Power Supply: 220V / 50Hz
Total Power: 2.6kW
Chamber Material: SUS304 Stainless Steel
Inner Tray Material: Aluminum / Stainless Steel optional
Machine Dimensions: 1070 × 770 × 1433 mm
Machine Weight: 281 kg
Max Loading Capacity: 15–20 kg per batch
Water Capture Capacity: 18 kg
Control System: PLC Touchscreen Interface
Display Features: Temperature, Time, Vacuum Graphs
Suitable Product Forms: Liquid Extract, Herbal Pulp, Paste
Recommended Industries: TCM, Botanical Labs, Herbal Pharmacies
Drying Cycle: 10–24 Hours
Automation Level: Fully Automatic
Cooling Unit: Built-in silent compressor
Vacuum Pump: Oil rotary pump (default) / Dry pump optional
Defrosting Method: Manual / Optional automatic
Noise Level: ≤65 dB
Data Storage: USB export optional
Monitoring: Real-time sensor data with alarms
Tray Heating Uniformity: ±1.5℃
Vacuum Gauge: Digital
Safety Features: Overheat, over-vacuum, overload protections
Packaging: Export wooden case
OEM Options: Logo, Control Language, Tray customization
Warranty: 12 Months
Certifications: CE, ISO9001
Lead Time: 15–20 business days
