Product Name: Vacuum Freeze Dryer
Type: Large Industrial Freeze Dryer
Working Principle: Vacuum freeze-drying
Drying Area: 100㎡ (customizable)
Material: Stainless Steel

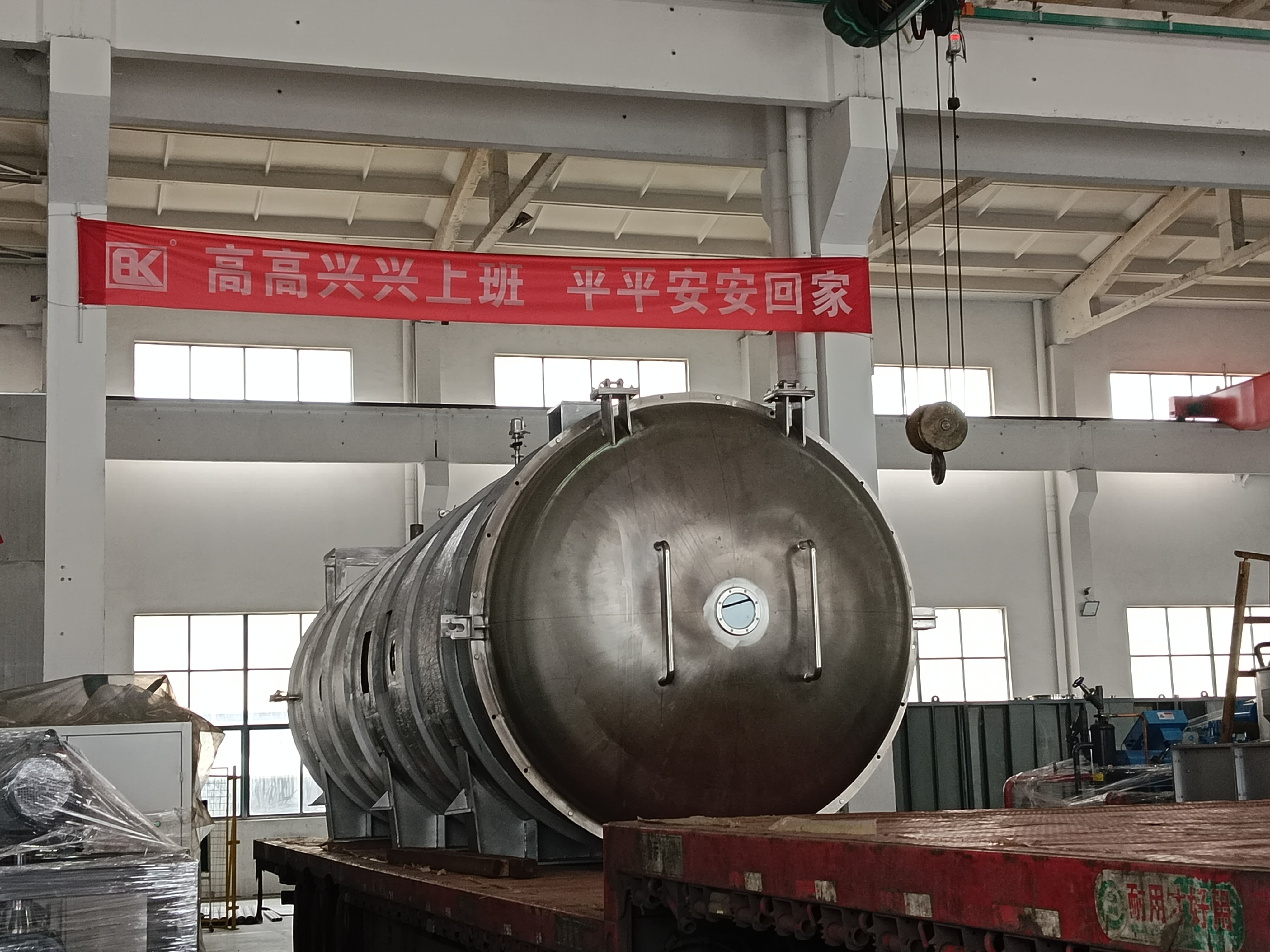

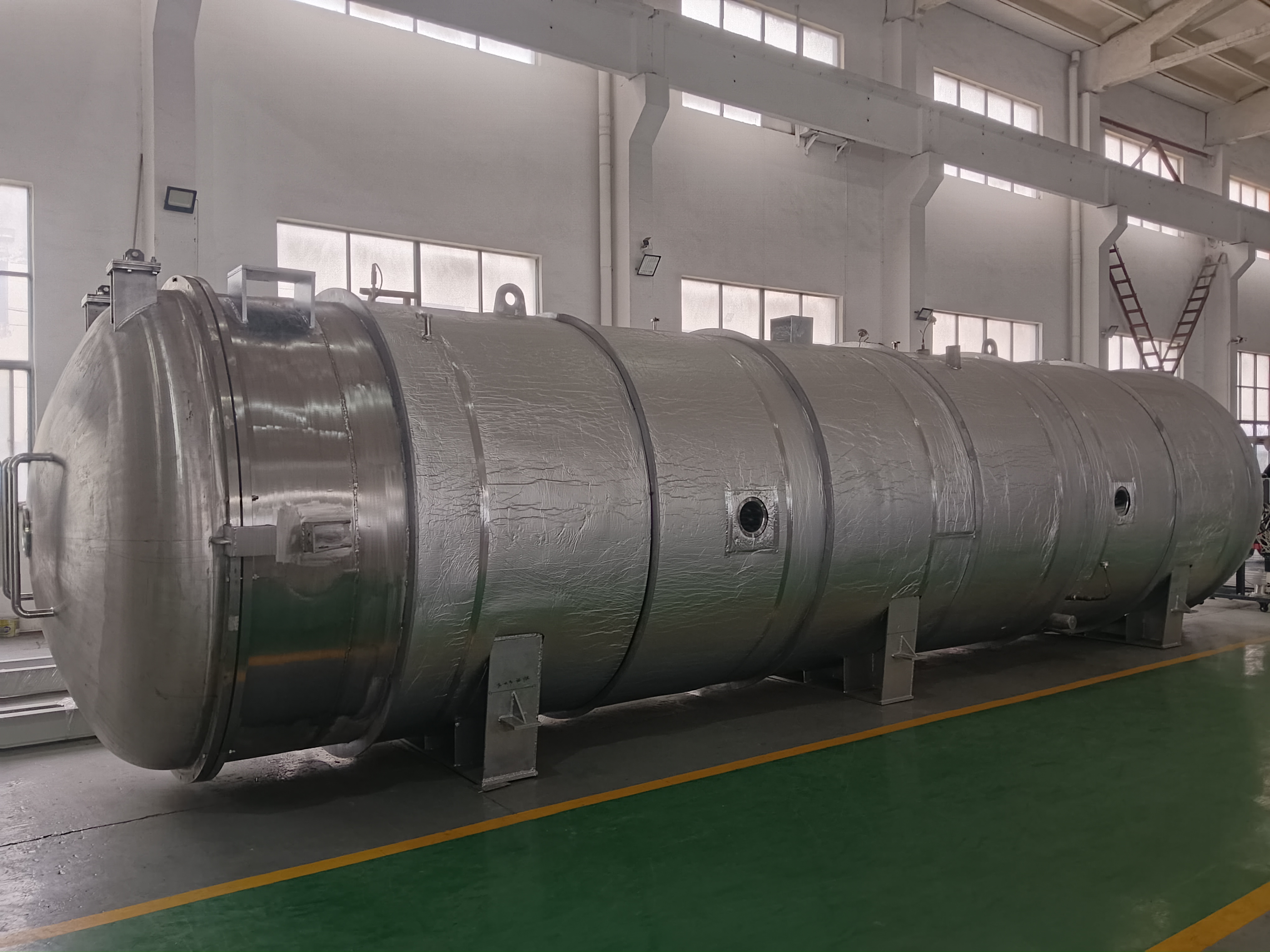

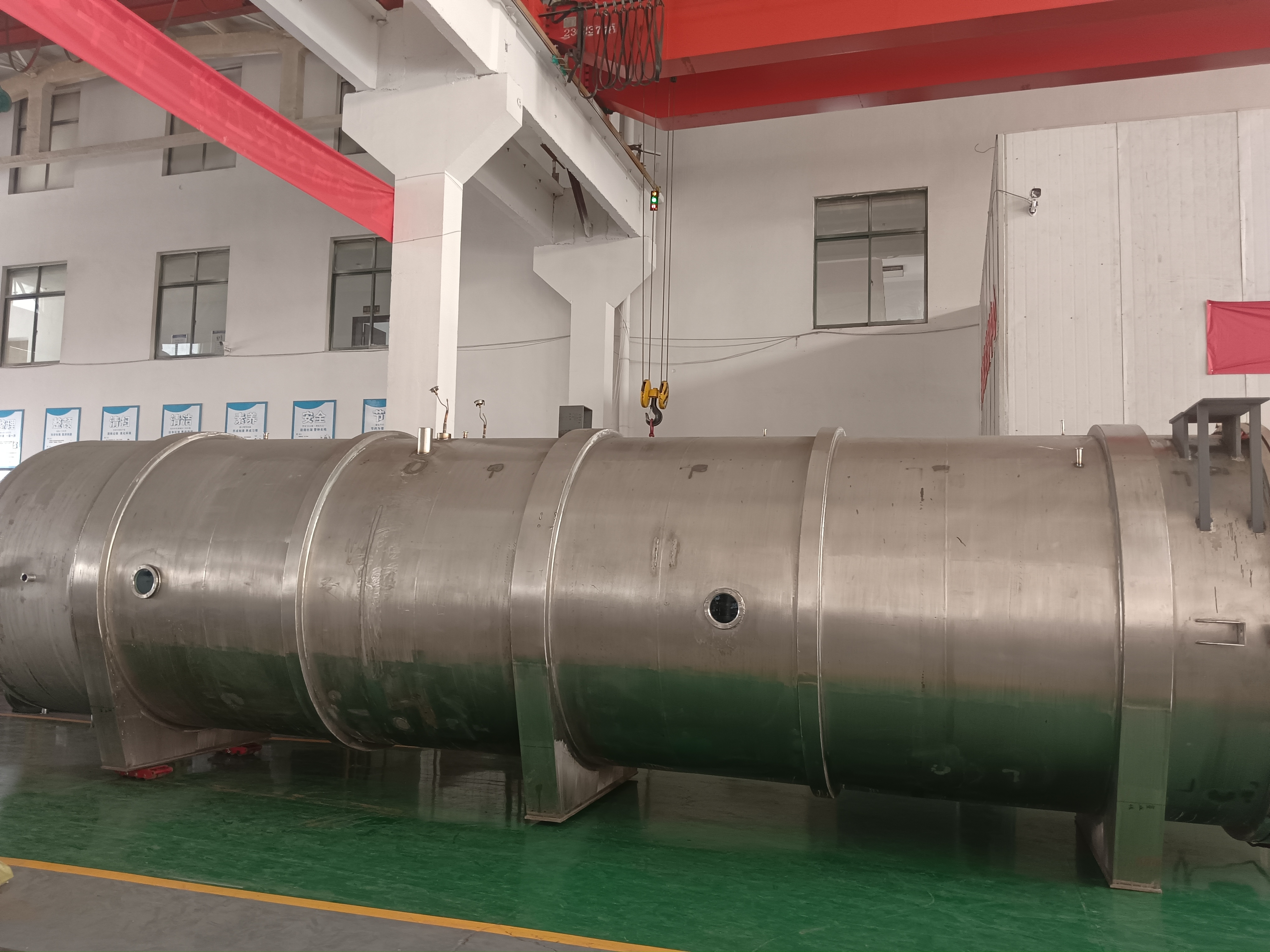

Appearance: Horizontal cylindrical structure
Chamber Material: Food-grade SUS304/316 stainless steel

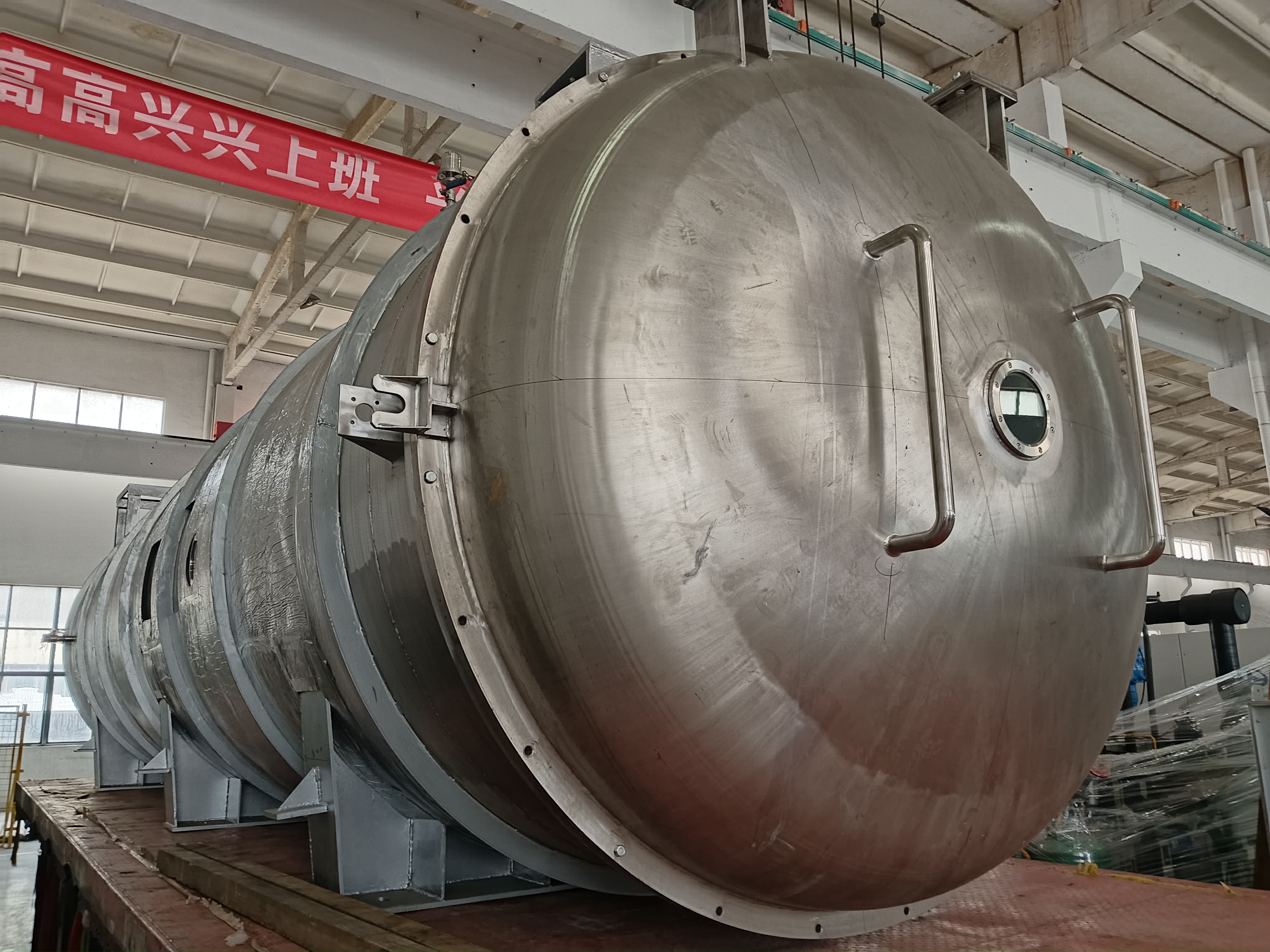

Door Structure: Front round door with observation window
Door Opening Method: Manual/Pneumatic
Sealing Method: High-strength silicone seal ring
Equipment Size: Customized
Equipment Weight: About 10-30 tons
Working Temperature: -50°C ~ +60°C
Condenser Temperature: ≤ -40°C
Vacuum Degree: ≤ 10Pa
Cooling Mode: Water cooled / Air cooled
Refrigeration Unit: Double-stage cascade refrigeration
Heating Method: Thermal oil / Electric heating
Control System: PLC automatic control
Operation Interface: Touch screen
Remote Monitoring: Supported

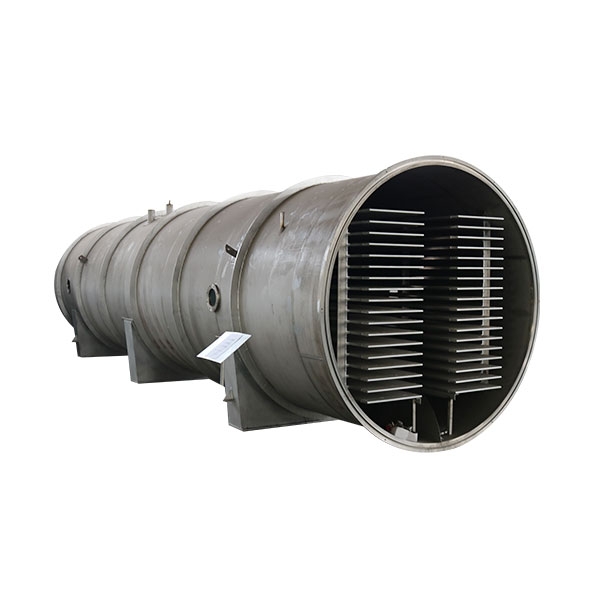

Tray Quantity: 10~30 layers
Tray Material: SUS304 stainless steel
Installation Method: Floor-mounted
Safety Device: Overpressure protection, temperature protection, emergency stop
Number of Viewing Windows: 2~4
Loading/Unloading Method: Manual/Mechanical push-pull
Power Consumption: 60~300KW
Power Supply: 380V/415V 50Hz
Main Applications: Pharmaceutical, food, biological, chemical, scientific research
Drying Efficiency: High efficiency, energy saving
Noise Level: ≤70dB
Operation Stability: High

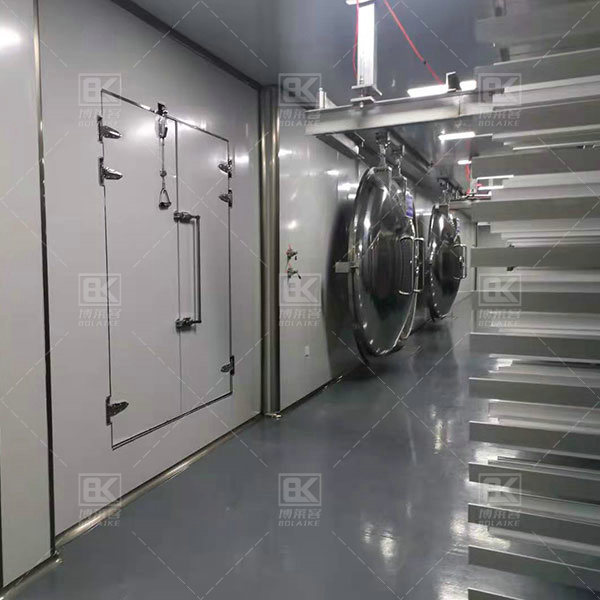

Installation Environment: Clean room / Workshop
Maintenance: Regular maintenance / Remote assistance
Service Life: ≥15 years

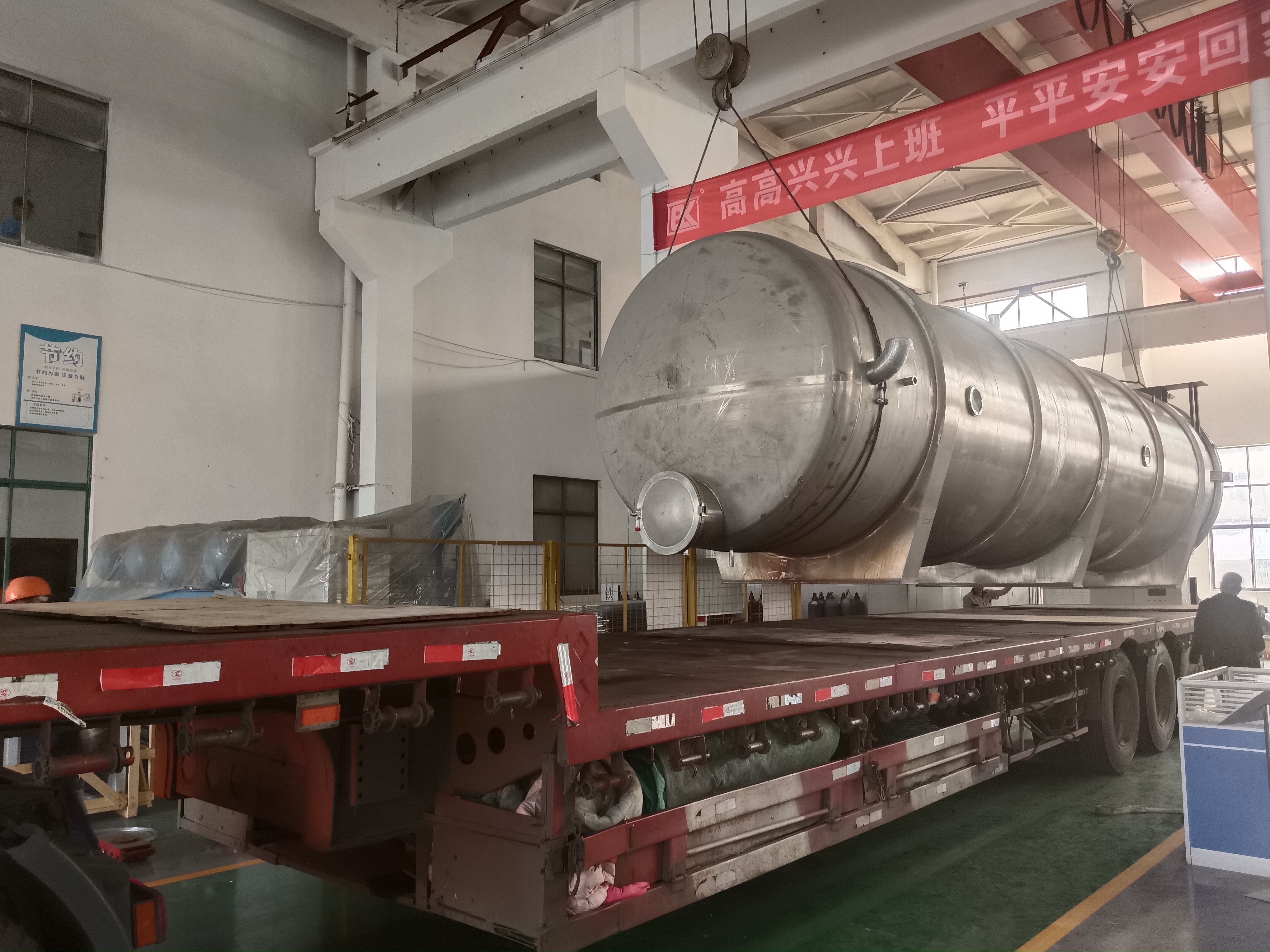

Transport: Lifting as a whole / Sectional transport
After-sales Service: On-site installation and commissioning
OEM/ODM: Supported
Warranty: 1-2 years
Auxiliary System: Vacuum pump, condenser, heating system, etc.
Cleaning Method: Automatic/manual cleaning
Anti-corrosion: Full stainless steel anti-corrosion
Certification: ISO/CE
Environmental Standard: Complies with national and industry standards
This large industrial vacuum freeze dryer uses advanced vacuum freeze-drying technology to efficiently retain nutrients and activity in materials. Widely used in pharmaceutical, food, biological, and chemical industries, it supports various customization needs, simple operation, high automation, and is an ideal choice for modern industrial drying.
