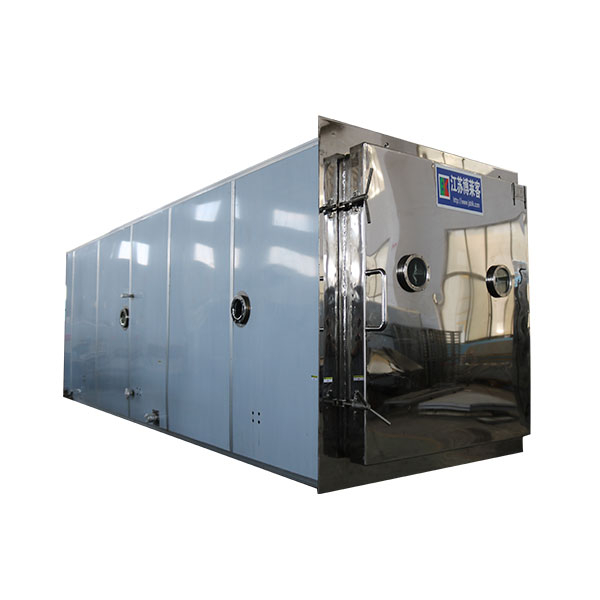

Product Name: Box-type Vacuum Freeze Dryer
Type: Large Industrial Freeze Dryer
Structure: Box/Chamber type
Working Principle: Vacuum freeze-drying
Drying Area: 50㎡ (customizable)
Material: Stainless steel and industrial-grade plate
Chamber Material: Food-grade SUS304/316 stainless steel

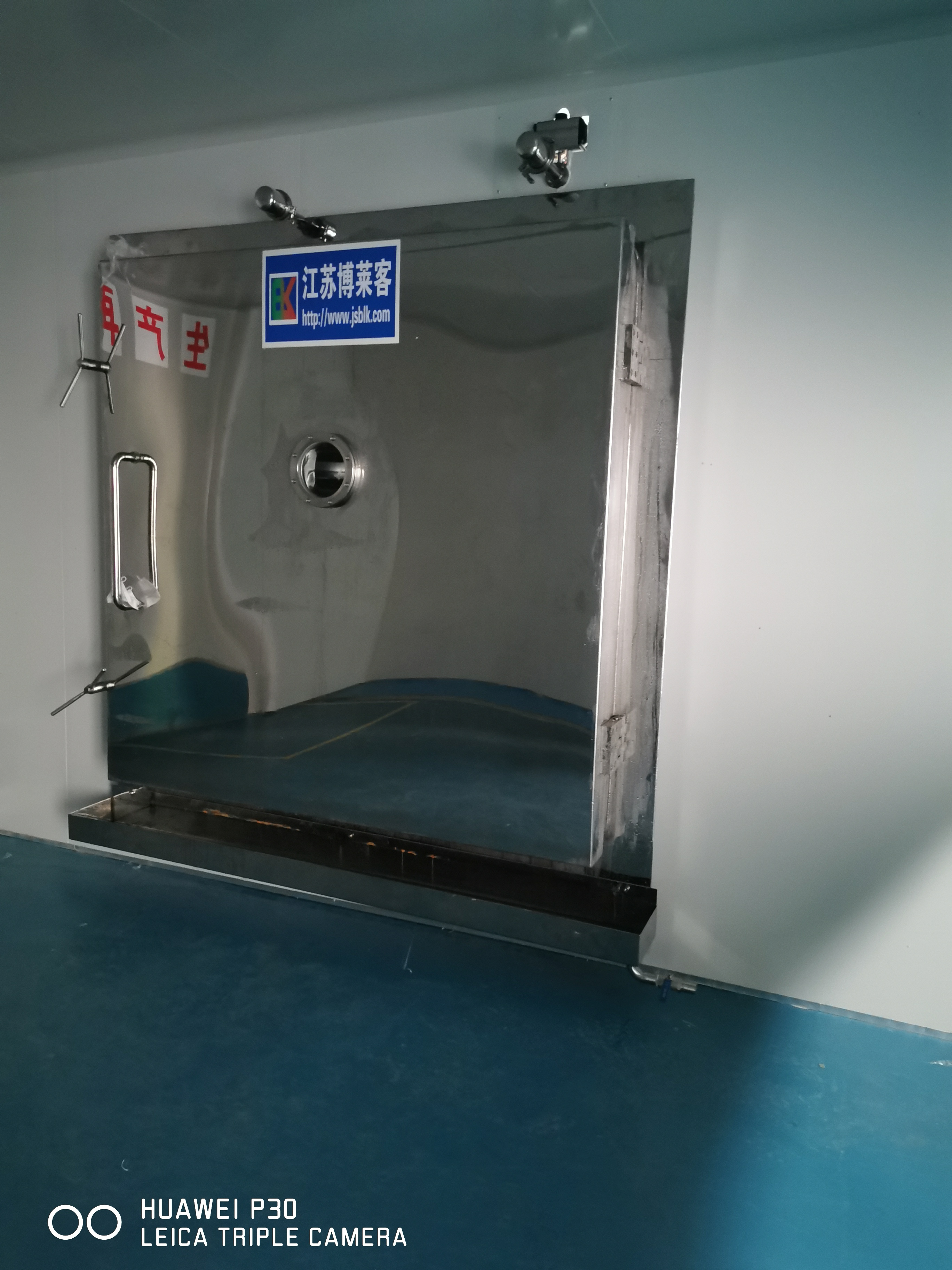

Door Structure: Large front square door with observation windows
Door Opening Method: Manual/Automatic
Sealing Method: High-strength silicone seal ring
Equipment Size: Customized
Equipment Weight: About 8-20 tons
Working Temperature: -50°C ~ +60°C
Condenser Temperature: ≤ -40°C
Vacuum Degree: ≤ 10Pa
Cooling Mode: Water cooled / Air cooled
Refrigeration Unit: Double-stage cascade refrigeration
Heating Method: Thermal oil / Electric heating
Control System: PLC automatic control
Operation Interface: Touch screen
Remote Monitoring: Supported
Tray Quantity: 8~25 layers (customizable)
Tray Material: SUS304 stainless steel
Installation Method: Floor-mounted
Safety Device: Overpressure, over-temperature, emergency stop
Number of Viewing Windows: 2-4
Loading/Unloading Method: Manual/Mechanical
Power Consumption: 40~150KW
Power Supply: 380V/415V 50Hz (three-phase)
Applications: Pharmaceutical, food, biological, chemical, scientific research
Drying Efficiency: High efficiency, energy saving
Noise Level: ≤70dB
Operation Stability: High
Installation Environment: Clean room / Workshop
Maintenance: Regular / Remote support
Service Life: ≥15 years

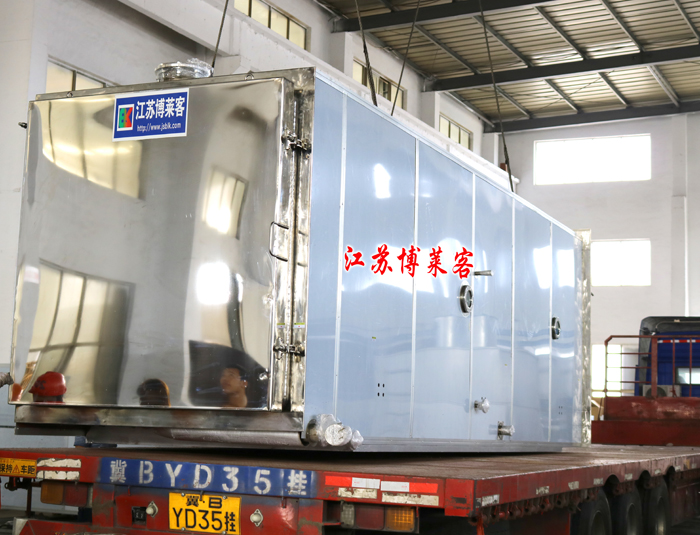

Transport: Whole unit lifting / Modular delivery
After-sales Service: On-site installation & training
OEM/ODM: Supported
Warranty: 1-2 years
Auxiliary System: Vacuum pump, condenser, heater, etc.
Cleaning Method: Automatic/manual
Anti-corrosion: Full stainless steel
Certification: ISO/CE
Environmental Standard: Meets national and industry regulations
This large box-type vacuum freeze dryer features advanced vacuum lyophilization technology, ensuring efficient drying while retaining nutrients and activity in materials. It is widely used in pharmaceutical, food, biological, and chemical industries, supporting flexible customization and easy operation. The equipment is suitable for cleanrooms and high-standard production environments.
