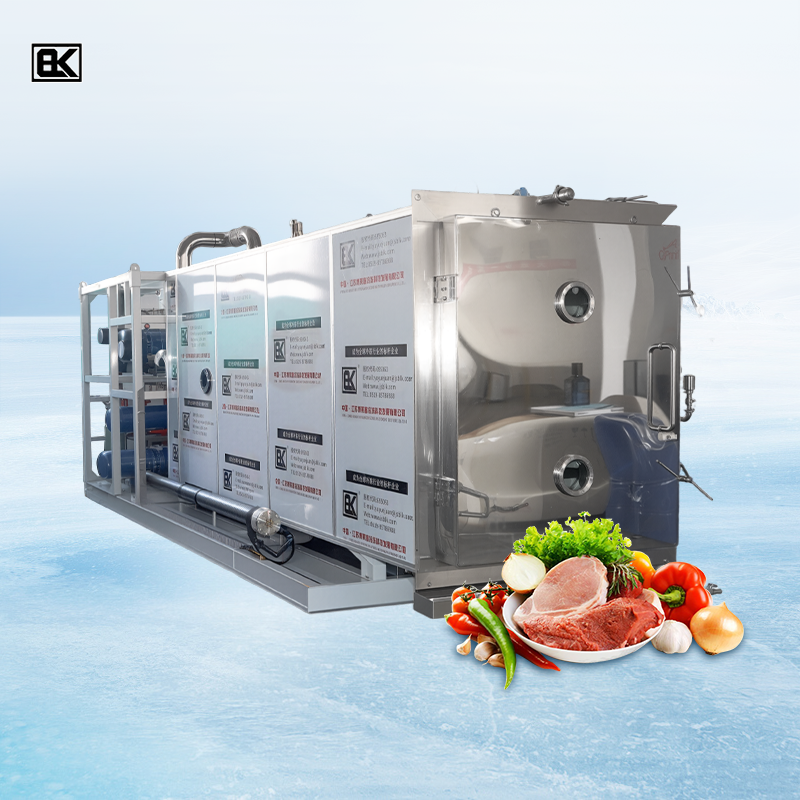

Product Name: 40㎡ Large Vacuum Freeze Dryer
Machine Type: Vacuum Freeze Dryer (Lyophilizer)
Model: BLK-FD-40
Effective Drying Area: 40 square meters
Tray Layers: 14 layers (customizable)
Tray Material: Food-grade SUS304 stainless steel
Machine Material: SUS304 mirror stainless steel / carbon steel with powder coating
Cooling Method: Water cooling
Condenser Temperature: -40℃ to -60℃
Condensate Capacity: ≥200kg per batch
Vacuum Pump Type: Rotary vane pump + Roots pump combination
Ultimate Vacuum: ≤10Pa
Control System: Integrated PLC + touch screen intelligent control
Operation Mode: Fully automatic + manual switchable
Heating Method: Thermal oil heating
Heating Temperature Range: -40℃ to +100℃
Defrost Method: Water defrost / electric heating defrost (optional)
Safety Protection: Overheat, overpressure, phase loss, leakage, low water pressure
Suitable Materials: Herbal medicine, fruits and vegetables, seafood, biological products, flowers
Drying Time: 14-24 hours depending on material
Cooling Water Requirement: ≤25℃, flow ≥5T/h
Installed Power: Approx. 60KW
Power Supply: 380V 50Hz (Three-phase five-wire)
Machine Weight: Approx. 11 tons
Overall Dimensions: Approx. 7600×2200×3000mm
Material Loading/Unloading: Manual or trolley
Drying Uniformity: ±1℃
Energy Efficiency: High-efficiency and energy-saving
Operating Noise: ≤75dB
Ambient Temperature Range: 5~35℃
Control Accuracy: ±0.1℃
Interface Language: Chinese / English
Application Industries: Food processing, pharmaceutical, biotechnology, agricultural processing
Certifications: CE / ISO9001
After-Sales Service: Nationwide warranty, on-site installation and debugging support
Customization: Non-standard customization supported
Main Function: Fast low-temperature dehydration, retains nutrients and active ingredients
Machine Features: Fast drying, easy operation, precise control, energy saving, eco-friendly
Packing: Wooden case
Shipping: Whole unit or split shipment
