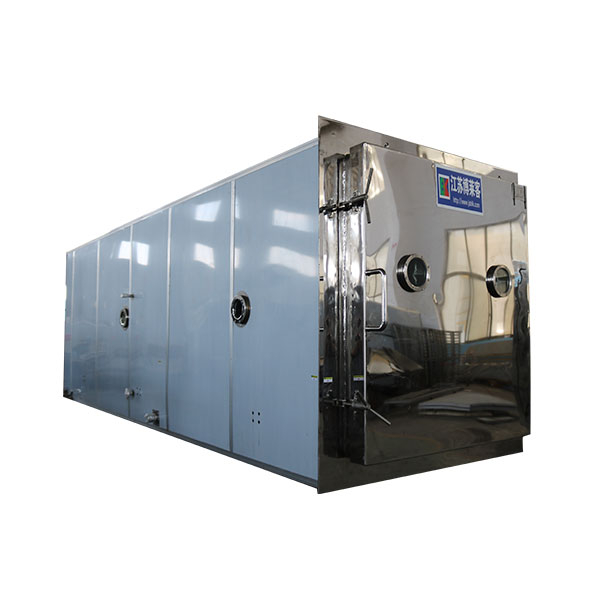

Product Name: Industrial Vacuum Freeze Dryer
Model: 50m² Effective Freeze-Drying Area
Type: Large Box-Type Freeze Dryer
Freeze-Drying Area: 50㎡
Shelves: Customizable (typically 6–10 layers)
Shelf Temperature Range: -50°C to +80°C
Condenser Temperature: ≤ -40°C
Condenser Capacity: ≥500kg/batch
Vacuum Range: ≤10 Pa
Ultimate Vacuum: ≤5 Pa
Control System: PLC Control with Touch Screen
Operation Mode: Manual & Automatic
Drying Time: 24–36 hours (depending on materials)
Refrigeration Method: Mechanical Compression Cooling
Heating Method: Heat Transfer Oil or Electric Heating
Cooling Method: Water Cooling
Vacuum Pump: Domestic or Imported Options
External Material: Carbon Steel with Coating or Stainless Steel
Chamber Material: SUS304 Stainless Steel
Door Structure: Mirror Polished Stainless Steel with View Windows
Overall Dimensions: Approx. 8000mm × 2200mm × 2500mm
Weight: Approx. 10–15 tons
Installation: Floor Mounted
Applications: Food, Pharmaceuticals, Biologicals, Chemicals
Material Compatibility: Fruits, Vegetables, Herbs, Powders, Liquids
Loading Method: Stainless Steel Trays or Pans
Door Seal: Silicone Sealing Ring
Safety System: Over-temperature, Over-pressure, Water Shortage Alarm
Data Recording: USB Data Export Supported
Remote Control: Optional Remote Monitoring System
Power Consumption: Approx. 80–120KW
Voltage: 380V/50Hz
Loading/Unloading: Manual or Trolley Type
Surface Finish: Mirror Polished
Door Lock: Manual Locking Handle
Viewing Window: Double-Layer Tempered Glass
Compliance: GMP Standards
Maintenance: Modular Design for Easy Maintenance
Ambient Temperature: 5°C ~ 35°C
Noise Level: ≤75 dB
Transportation: Whole or Split Transport Available
Warranty: 1 Year (Extended Warranty Available)
