This advanced vacuum freeze dryer is engineered for large-scale drying needs in pharmaceutical, food, and biotech applications, offering precise control, durability, and energy efficiency.

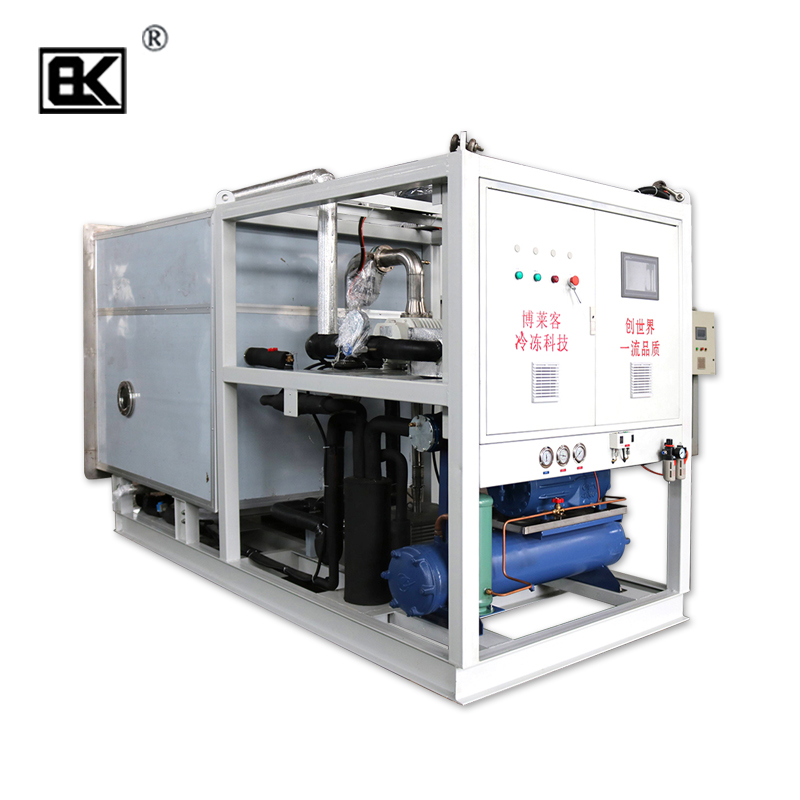

Model: 5㎡ Freeze Dryer
Drying Area: 5㎡
Applications: Pharmaceuticals, Biotechnology, Food, Chemicals
Condenser Temperature: -50℃ to -85℃
Vacuum System: High-efficiency pump group
Control System: PLC + Touch Screen Automation
Operating Interface: Intelligent HMI
Cooling Mode: Water cooling / Air cooling (optional)
Refrigerant Type: Eco-friendly R404A / R507

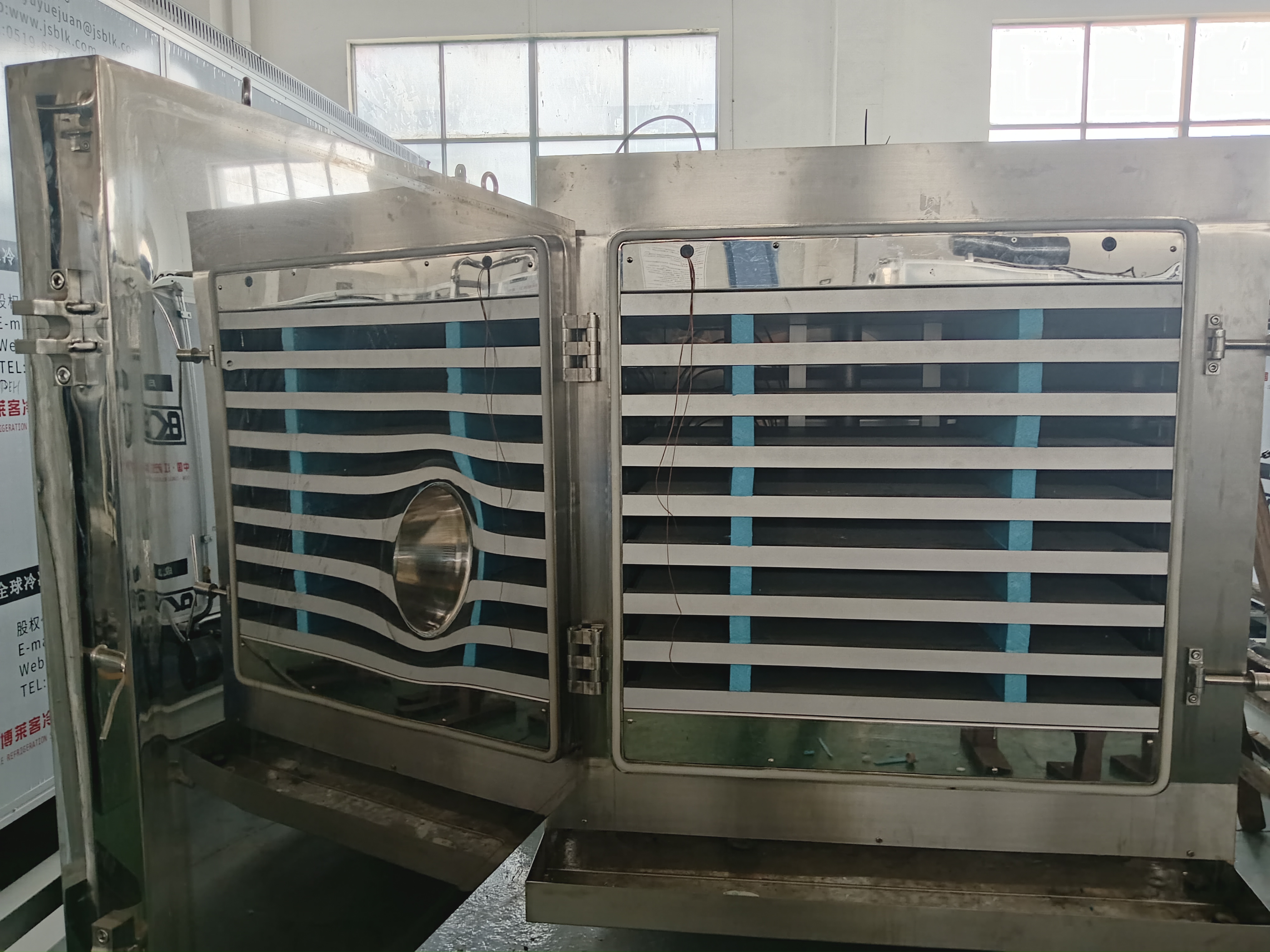

Tray Layers: 5–8 (customizable)
Material Loading: Stainless steel trays
Condenser Capacity: Large volume
Ice Condensation Capacity: ≥50kg per batch
Chamber Material: SUS304 Stainless Steel
Exterior Finish: Powder-coated steel + stainless panel
Compressor Brand: Bitzer / Copeland / Hanbell (optional)
Temperature Uniformity: ±1℃
Control Accuracy: 0.1℃
System Vacuum: ≤10Pa
Drying Duration: 6–24 hours (based on materials)
Freezing Time: 2–4 hours
Heating Method: Thermal oil / Electric heating
Defrosting: Automatic hot gas defrost
Alarm System: Multiple fault alarms
Safety Protection: Multi-layer safety design
Energy Efficiency: Low energy consumption system
Environmental Compatibility: Operates in high-temp/humidity
Connection Interface: Standard flange or quick couplings
Exhaust Filter: Oil-gas separator
Chamber Design: Rounded corners, easy to clean
Vacuum Measurement: Capacitive vacuum gauge
Data Logging: Auto temperature/vacuum recording
Remote Access: Remote monitoring & control supported
MES Integration: Compatible
Power Supply: 380V 3-phase 50Hz
Installation: Integrated unit, easy setup
Maintenance: Modular structure for quick servicing
Dimensions: Approx. 3.2m x 1.4m x 1.9m
Weight: Approx. 1800kg
Noise Level: ≤75dB
Lifespan: ≥10 years
This freeze dryer is designed for high-capacity, precise, and hygienic freeze drying of sensitive products. An optimal solution for modern production needs.
