Model: 100m² Industrial Freeze Dryer

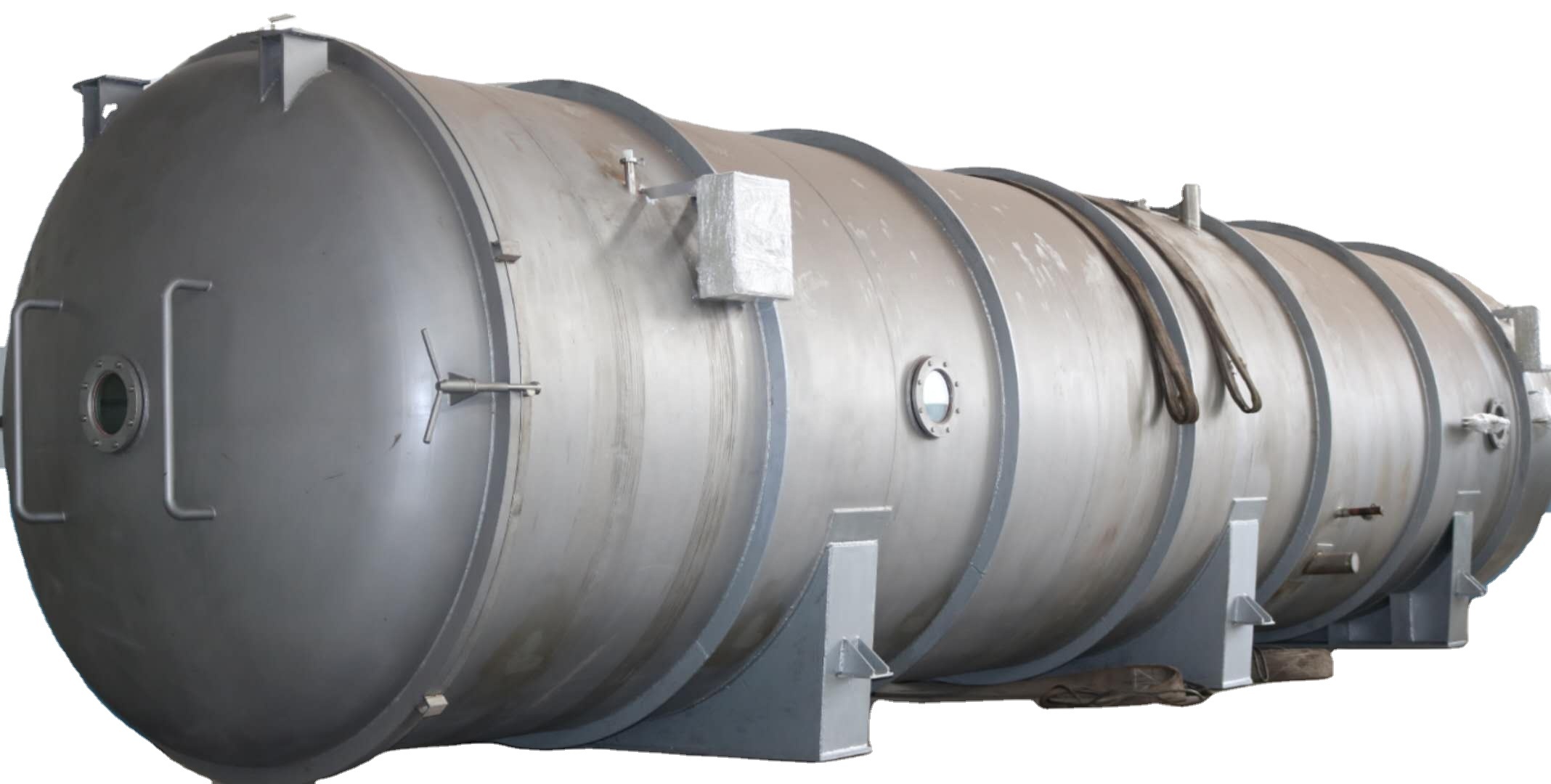

Chamber Type: Horizontal cylindrical vessel
Shelf Area: 100m²
Shelf Layers: Multiple adjustable shelves
Shelf Temperature Range: -50°C to +70°C
Chamber Volume: Large capacity (customizable)
Material: SUS304/316L Stainless steel
Internal Finish: Mirror-polished
External Finish: Brushed stainless steel
Door Type: Hinged front door with secure locking
Observation Window: Multiple glass sight ports
Condenser Capacity: ≥ 200 kg/24h ice
Condenser Temperature: -40°C or lower
Vacuum System: High-performance rotary vane or screw vacuum pump
Ultimate Vacuum: ≤ 5 Pa
Defrosting Method: Water or electric heating
Refrigeration System: Double-stage cascade refrigeration
Refrigerant: Eco-friendly R404A/R448A
Heating System: Electric heating plate or steam
Temperature Control Accuracy: ±1°C
Vacuum Control: PLC automatic control
Control System: PLC + touchscreen HMI
Alarm Function: Over-temperature, over-pressure, power failure
Recording Function: Automatic process data recording
Power Supply: 380V/50Hz 3-phase (customizable)
Power Consumption: Approx. 75~150 kW
Water Supply: Required for condenser cooling
Compressed Air: For valve operation (if required)
Control Interface: English/Chinese selectable
Remote Monitoring: Optional, via Internet
Operating Modes: Manual/automatic/recipe storage
Product Loading Method: Trolley or tray
Cleaning: CIP (clean-in-place) optional
Sterilization: SIP (steam-in-place) optional
Gasket Type: Silicone or EPDM
Application: Food, pharmaceuticals, biologicals, chemicals
Safety Features: Pressure relief, emergency stop
Chamber Pressure Range: Atmospheric to deep vacuum
Design Pressure: ≤ 0.1 MPa
Productivity: Suitable for mass production
Footprint: Large, for industrial workshop use
Installation: Professional on-site installation required
Maintenance: Easy access for service
Warranty: 12-24 months
Certification: CE/ISO/GMP compliant
This large-scale freeze dryer is ideal for high-volume dehydration of fruits, vegetables, meats, medicines, and biotech products, offering energy efficiency, precise temperature/vacuum control, and consistent product quality.
