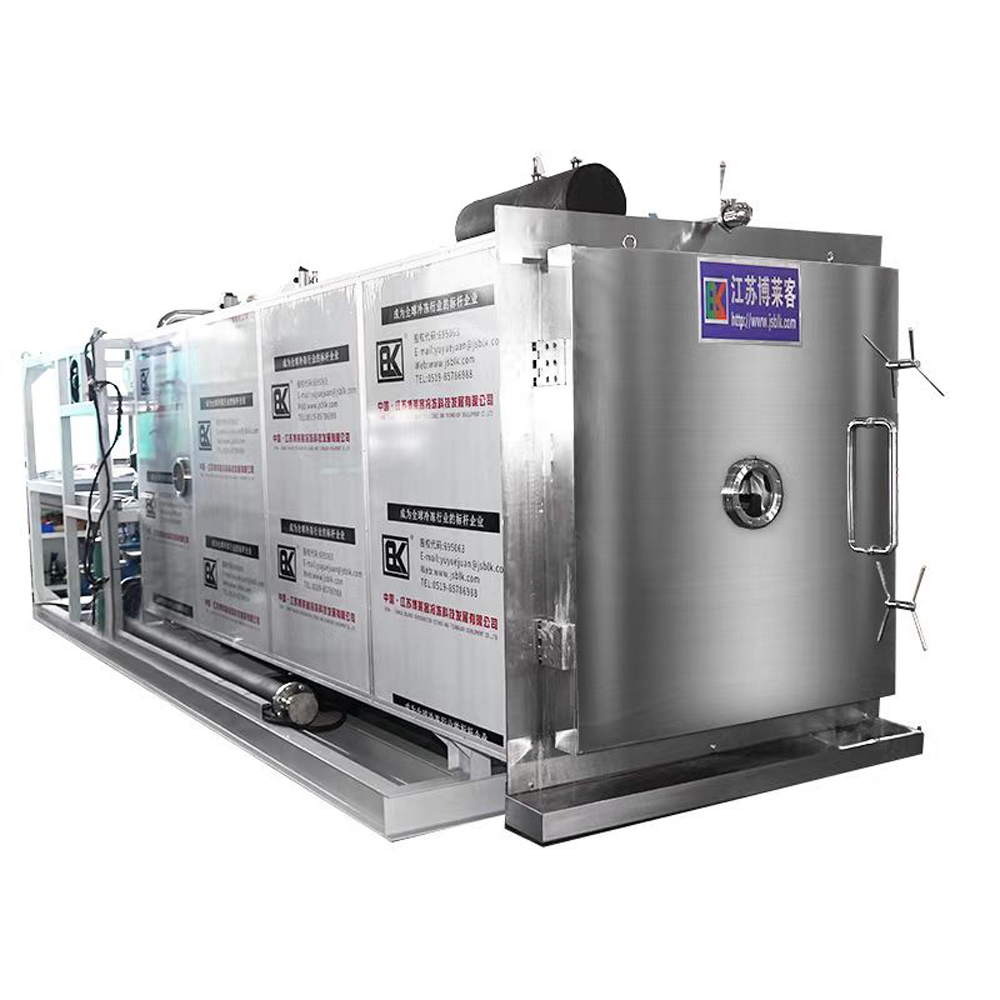

    35㎡ square vacuum freeze dryer
    35㎡ square vacuum freeze dryer
    35㎡ square vacuum freeze dryer
    35㎡ square vacuum freeze dryer
    35㎡ square vacuum freeze dryer
    ❤ Add to collection
  • 35㎡ square vacuum freeze dryer

    Instructions: Supply water and electricity→Raw materials loading the tray→Put into freeze-dryer→Freezing and sublimation drying (freeze-dryer can be directly pre-freezing) → Finished and packaging

    Capacity:50KG-300KG

    Equipment model:BLK-FD-5(5㎡),BLK-FD-10(10㎡),BLK-FD-20(20㎡),BLK-FD-30(30㎡)

    Applications: Vegetables, Fruits (apples, strawberries, kiwifruit, bananas, durian, carambola, balsam, etc.), Flowers (roses, etc.), Medicinal materials (cordyceps, medlar, dendrobium, antler, ginseng, etc.), Liquid products (probiotics, honey, laboratory syntheses, etc.),Bbiological products, Chemical raw materials, etc. Other types of products freeze dry please consult!


    • ¥0.00
      ¥0.00
      ¥0.00
      ¥0.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.000KG
    • Quantity:
    • Consultation
Description

Instructions: Supply water and electricity→Raw materials loading the tray→Put into freeze-dryer→Freezing and sublimation drying (freeze-dryer can be directly pre-freezing) → Finished and packaging

Capacity:50KG-300KG

Equipment model:BLK-FD-5(5㎡),BLK-FD-10(10㎡),BLK-FD-20(20㎡),BLK-FD-30(30㎡)

Applications: Vegetables, Fruits (apples, strawberries, kiwifruit, bananas, durian, carambola, balsam, etc.), Flowers (roses, etc.), Medicinal materials (cordyceps, medlar, dendrobium, antler, ginseng, etc.), Liquid products (probiotics, honey, laboratory syntheses, etc.),Bbiological products, Chemical raw materials, etc. Other types of products freeze dry please consult!



Model

BLK-FD-5

BLK-FD-10

BLK-FD-20

BLK-FD-30

Overall appearance and size mm

Square

3500*1800*2300

Square

4700*1800*2300

Square

5200*1800*3000

Square

6700*1800*3000

Installed power

15.9KW

20.9KW

39.2KW

52.5KW

Effective area of pallet

5.005m²

10.1m²

20.02m²

30.03m²

Clapboard temperature

-45~+80

-45~+80

-45~+80

-45~+80

Cold trap temperature

Minimum negative 50 ℃

Minimum negative 50 ℃

Minimum negative 50 ℃

Minimum negative 50 ℃

Ultimate vacuum

10Pa

empty container

10Pa

empty container

10Pa

empty container

10Pa

empty container

Heating method

Silicone oil, electric heating6KW

Silicone oil, electric heating10KW

Silicone oil, electric heating20KW

Silicone oil, electric   heating30KW

General charging capacity

50KG

100KG

200KG

300KG

Note: Except for the above models, all vacuum freeze dryers with 5KG-3000KG processing capacity can be produced according to customer requirements.
